Multiple Phase

Rated Current 1-60A

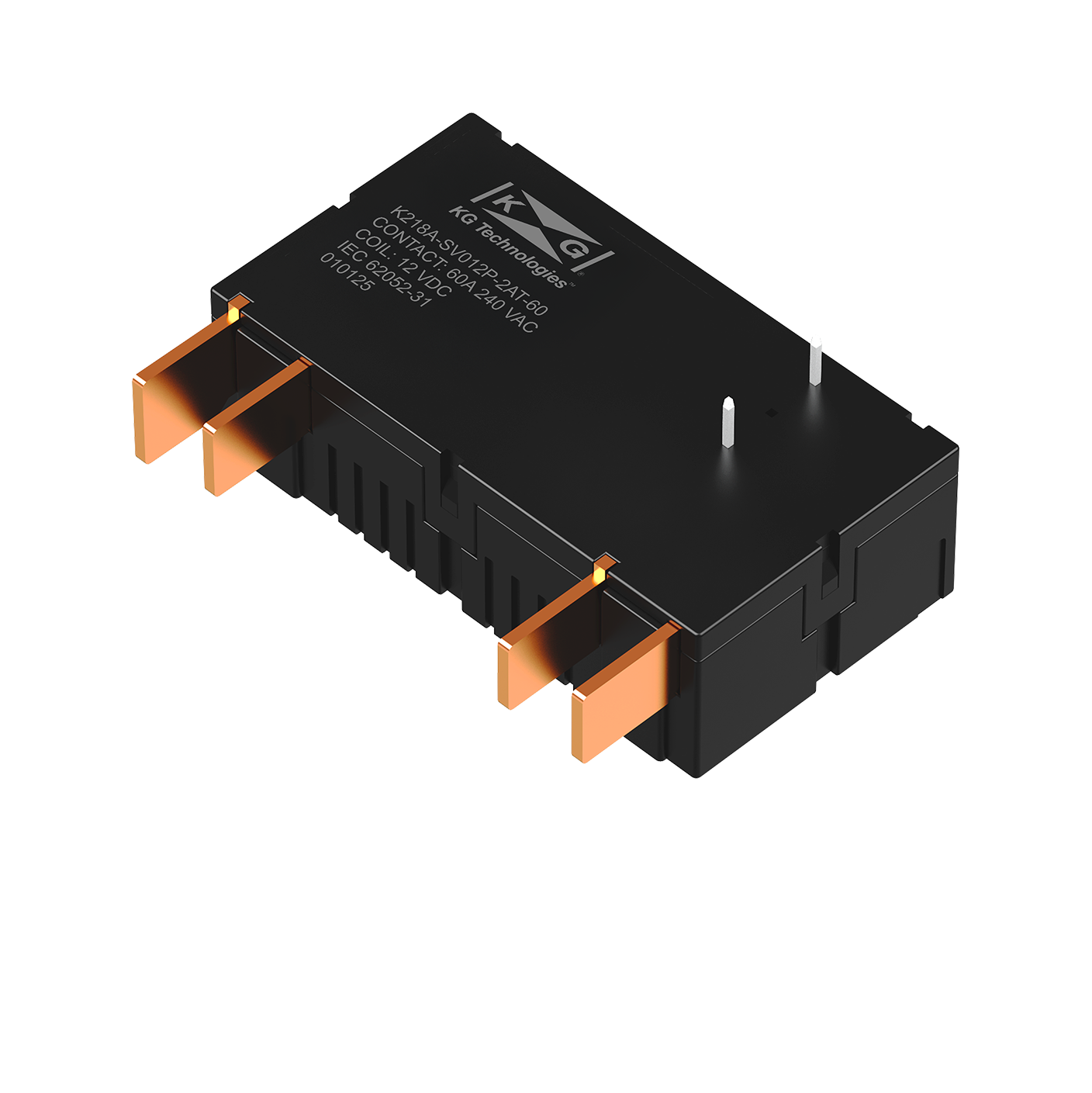

K218 - 60A High-power Latching Relay

• 60A Latching Relay
• UC2 capability as per IEC 62052-31:
  • Rated Operational Current (Ie) = 60A
  • Rated Operational Voltage (Ue) = 240Vac
• 4kV dielectric strength between coil and contacts
• 10kV impulse withstand (Circuit to Circuit)
• Outline dimensions: (55.6 x 30.5 x 16.5)mm
• Custom assemblies available with flex wire and/or copper extensions, and/or with integrated shunt
• RoHS compliant materials and process
