Rated Current 120A+

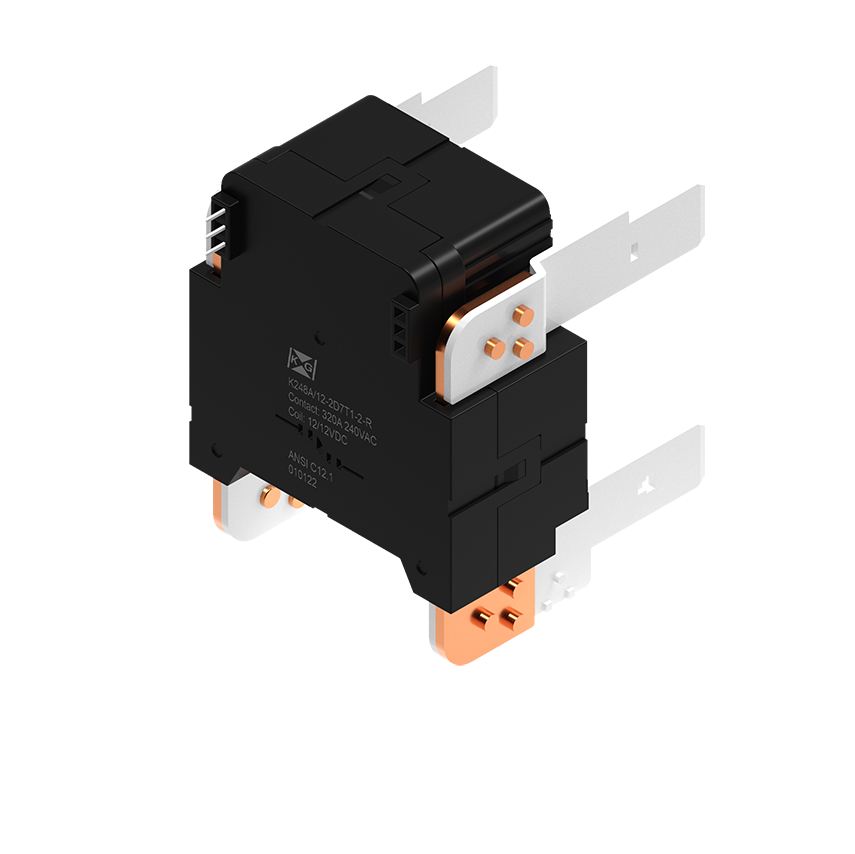

K248 - 320A High Power Latching Relay

• 320A Latching Relay
• Electrical endurance: 6000 cycles
•  4kV dielectric strength between coil and contacts
•  According to ANSI C12.1 (Carrying current: 12kA / 66.7ms; 7kA /100ms)
• Outline dimensions: (120.35 x 92.4 x 51.9)mm
• Contact resistance: ≤0.15mΩ
• RoHS compliant materials and process
