Single Phase

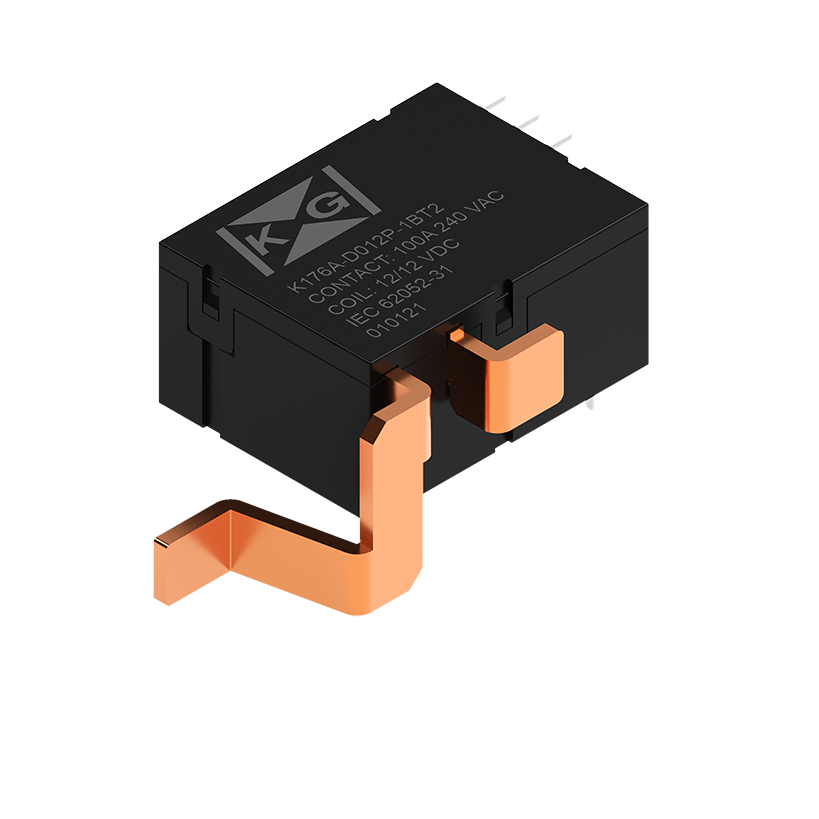

• 100A Latching Relay
• UC3 capability as per IEC 62052-31:

• Rated Operational Current (Ie) = 100A
• Rated Operational Voltage (Ue) = 240V

• UC3 capability as per IEC 62055-31:

• Rated Breaking Current (Ic) = 90A
• Reference Voltage (Un) = 240V
• Rated Breaking Voltage (Uc) = 276V

• Auxiliary Contact : 1 Form A/B (Contact state is opposite from load contact state)
• 4kV dielectric strength between coil and contacts
• Outline dimensions: (42 x 32 x 20.8)mm
• Custom assemblies available with flex wire and/or copper extensions, and/or with integrated shunt
• RoHS compliant materials and process
